Established in 1948 by Colin Macnaught, Macnaught Pty. Ltd. is a 100% Australian-owned company based in Turrella, Sydney, which designs and manufactures a wide range of high quality equipment for the lubrication and fluid transfer industries including grease pumps and guns, oil pumps and guns, fuel pumps, hose reels and flow meters. These products are sold into the agricultural, industrial, automotive, mining, aviation and marine industries around the world.

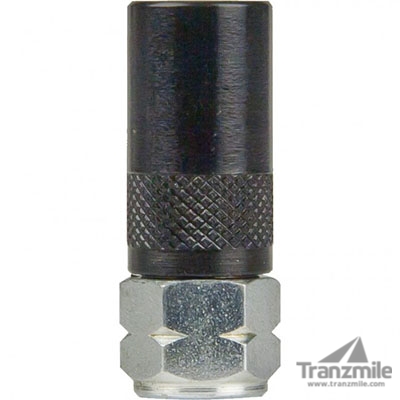

KY SUPERGRIP™ Coupler

KY SUPERGRIP™ Hydraulic grease coupler - 1/8"" BSP(F) Standard coupler used on all types of Macnaught hand and air-operated greasing equipment.

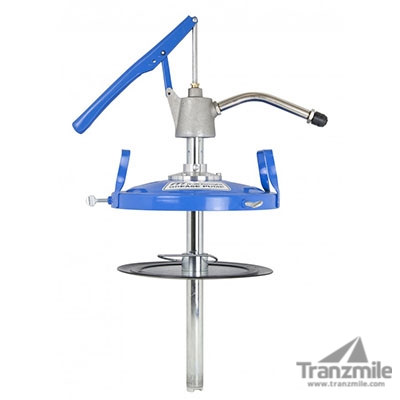

J3 Portable Grease Transfer Pump

Product Overview

The J3 Grease Transfer Pump was designed for fast, easy bulk filling of grease guns. This provides an economical solution for refilling most standard grease guns from bulk pails instead of purchasing more expensive grease cartridges. The sealed system also keeps grease free from contamination. The J3 is ideal for refilling Macnaught's range of manual and air powered grease guns via the 9mm filler / bleeder valve. The minilube® can be refilled from the J3 by transferring directly into the container using the follower plate as a guide. A height adjustable lid and pump assembly offers compatibility with several different size grease pails up to 20kg. The J3 is the best choice for high volume / low pressure grease transfer, especially in remote or on-the-job applications.



Features & Benefits

  • Easy grease gun fill connection - Either refill or top-up cartridge guns (via a filler/bleeder valve) or K7 MINILUBE by refilling containers.
  • Delivers up to 54g per stroke - Allows quick grease filling/refilling
  • Dual purpose rubber edge follower plate - Adaptable for either straight or tapered containers
  • Height adjustable lid and pump assembly - Compatible with grease pails up to 20kg
  • Fully repairable - Provides a much longer service life
  • Filler nozzle suits all Macnaught grease guns and K7-24 and K7-67 containers - Easy grease gun fill connection
  • J65 bulk fill nozzle - Adjustable outlet tube
  • Carry handles - Portable go anywhere grease transfer system
  • Fully sealed grease transfer system - Contamination free grease transfer every time
  • Compatible with most greases up to NLGI No.2 viscosity - Versatility of use
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • Can refill a cartridge grease gun in around 8 pumps



Technical Specifications

  • Delivers up to 54g per stroke
  • Adjustable rigid extension
  • Compatible with grease pails up to 20kg
  • Maximum viscosity - Up to NLGI 2
  • Wetted parts: Aluminium, steel, brass, Nitrile rubber and Teflon



Package Includes

  • J3 Grease transfer pump
  • Height adjustable lid assembly
  • Rubber edge follower plate
  • Rigid extension

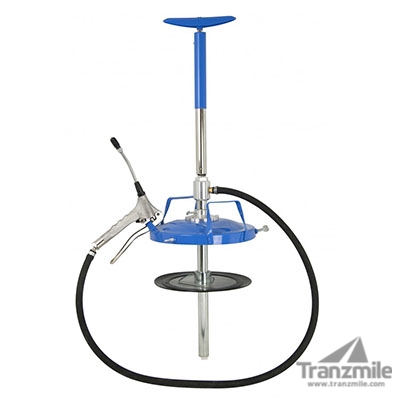

K4 Portable High Pressure Manual Greasing System

Product Overview

The K4 SUPERLUBE™ Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. The SUPERLUBE™ consists of two main components, a hand operated spring-loaded T handle pump, which dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR Pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K4 is an economical alternative to the more expensive air-operated greasing systems.



Features & Benefits

  • Sliding bung adapter - allows several different height grease pails from 12.5-20kg to be covered by one single model
  • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
  • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
  • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
  • Up to 45 times the grease capacity of a cartridge - Less down time changing grease cartridges
  • Self air bleeding system when first used - No air purging necessary when changing containers
  • Manually operated & light weight with carry handle - Portable, go anywhere system
  • 2 way KR Pressurite Gun - Two grease guns in one
  • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
  • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
  • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
  • Fully sealed greasing system - Clean grease to the bearing every time
  • Handles most greases up to NLGI No.2 viscosity - Versatility of use
  • Easy push-down hand operated spring loaded T handle pump - Provides 60 shots at the gun, no pressure developed in container, allows one-handed operation
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • KY Supergrip Coupler - Positive, no leak connection. Ensures grease gets to the bearing
  • Inbuilt grease strainer - Ensures clean grease to the bearing
  • Fully repairable - Provides a longer service life
  • 3m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
  • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
  • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for different applications



Technical Specifications

  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 60 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 3m Flexible delivery hose



Package Includes

  • K4 SUPERLUBE™ Portable Greasing system
  • KR PRESSURITE gun
  • 3m Flexible delivery hose
  • Follower plate

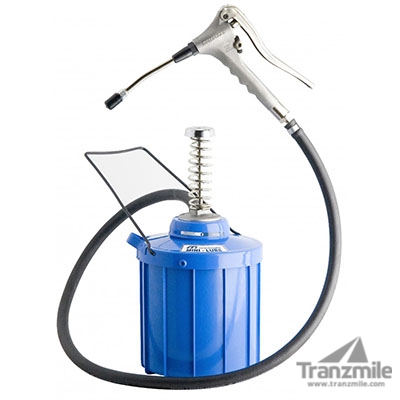

K7 MINILUBE® Portable High Pressure Manual Greasing System with 5kg KT6 reusable container

Product Overview

The K7-67 MINILUBE® (5kg model) is a portable High Pressure Manual Greasing System that provides high-volume/high-pressure greasing in a compact and portable package. The K7-67 comes with a KT6 5kg reusable container and consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7-67 is an economical alternative to the more expensive air-operated greasing systems.



Features & Benefits

  • Includes a KT6 5kg reusable container
  • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
  • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
  • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
  • Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
  • Self air bleeding system when first used - No air purging necessary when changing containers
  • Manually operated & light weight with carry handle - Portable go anywhere system.
  • 2 way KR patented Pressurite Gun - Two grease guns in one
  • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
  • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
  • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
  • Fully sealed greasing system - Clean grease to the bearing every time
  • Handles most greases up to NLGI No.2 viscosity - Versatility of use
  • Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
  • Inbuilt grease strainer - Ensures clean grease to the bearing
  • Fully repairable - Provides a longer service life
  • 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
  • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
  • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications



Technical Specifications

  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 30 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Includes a KT6 reusable 5kg grease container for contamination free greasing or bulk fill via a J3 Transfer Pump
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 1.5m Flexible delivery hose



Package Includes

  • K7 MINILUBE® Portable Greasing system
  • KR PRESSURITE gun
  • 1.5m Flexible delivery hose
  • Follower plate
  • KT6 reusable 5kg grease container



Notes

  • The K7-01 MINILUBE® does not include a 2.5kg container
  • The K7-24 comes with a 2.5kg container
  • The K7-67 comes with a 5kg container

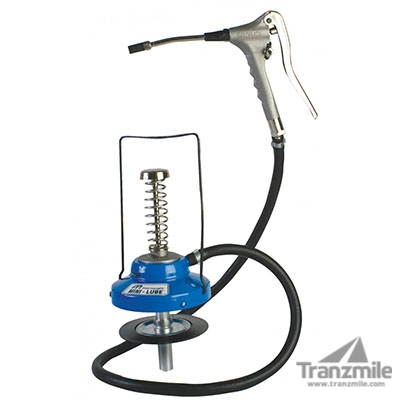

K7 MINILUBE® Portable High Pressure Manual Greasing System

Product Overview

The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems.



Features & Benefits

  • Compatible with 2.5kg containers
  • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
  • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
  • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
  • Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
  • Self air bleeding system when first used - No air purging necessary when changing containers
  • Manually operated & light weight with carry handle - Portable go anywhere system.
  • 2 way KR patented Pressurite Gun - Two grease guns in one
  • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
  • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
  • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
  • Fully sealed greasing system - Clean grease to the bearing every time
  • Handles most greases up to NLGI No.2 viscosity - Versatility of use
  • Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
  • Inbuilt grease strainer - Ensures clean grease to the bearing
  • Fully repairable - Provides a longer service life
  • 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
  • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
  • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications



Technical Specifications

  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 30 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Compatible with 2.5kg grease containers for contamination free greasing or bulk fill via a J3 Transfer Pump
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 1.5m Flexible delivery hose



Package Includes

  • K7 MINILUBE® Portable Greasing system
  • KR PRESSURITE gun
  • 1.5m Flexible delivery hose
  • Follower plate



Notes

  • The K7-01 MINILUBE® does not include a 2.5kg container
  • The K7-24 comes with a 2.5kg container
  • The K7-67 comes with a 5kg container
K40 LEVERGUN® 400g Grease Gun

Product Overview

The K40 LEVERGUN® is a lever-action grease gun designed for high pressure/high volume greasing and can easily clear blocked or damaged grease nipples. The K40 features a durable die cast aluminium head, a heavy gauge steel barrel and a heavy duty follower assembly to handle a wide range of grease viscosities up to NLGI No 2. Comes complete with 150mm (6") rigid high pressure extension and KY SUPERGRIP™ coupler. Suits 400g grease cartridges, bulk filling or Macnaught J3 transfer pump loading.



Features & Benefits

  • Develops 12,000psi with ease - To push grease through the toughest of applications
  • Can be filled from a bulk supply of grease - Economical & contamination free greasing
  • 9mm diameter hand operated Filler / Bleeder Outlet - For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
  • Reversible follower - For cartridge or bulk applications
  • Lock the plunge rod into the follower - For easier bleeding
  • Machined barrel thread - Makes it easier to screw the barrel to the head
  • Stepped Barrel - For easy grip
  • Heavy-duty design and construction - Reduces wear & facilitates effortless pressure building
  • Long lever handle - Ability to develop high greasing pressure to easily clear blocked grease nipples
  • Screw fasteners - No rivets for easy servicing
  • 150mm (6") Rigid high pressure extension - Accurately grease with two handed operation
  • Fully repairable - Provides a much longer service life
  • KY SUPERGRIP™ coupler - Positive no leak connection ensures grease gets to the bearing.



Technical Specifications

  • Delivery pressure up to 82,750kPa (12,000psi)
  • Rigid 150mm(6") high pressure extension hose
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 1.5g per shot
  • Heavy-duty 1.6mm thick barrel
  • Robust zinc pull handle
  • Wetted parts - Aluminium, steel, nitrile rubber, cork and nylon
  • Maximum viscosity - Up to NLGI 2
  • Compatible with 400g cartridges for contamination free greasing



Package Includes

  • K40 LEVERGUN® 400g Grease Gun
  • Rigid 150mm(6") high pressure extension hose
  • KY SUPERGRIP™ 3 jaw high pressure coupler
K32 FLEXIGUN® 400g Grease Gun

Product Overview

The K32 FLEXIGUN® is a classic grease gun that incorporates a unique variable stroke piston and valve arrangement for true ‘one handed’ operation. The push in handle is easy to use and requires much less effort to operate. Increased pressure can be produced by short strokes (low volume) or high volume using a long stroke (low pressure). Heavy duty pistol grip construction with comfortable ergonomics to suit 400g grease cartridges, bulk filling or Macnaught J3 grease transfer pump loading. The K32 FLEXIGUN® is fully repairable with a strong die cast head and heavy gauge steel barrel for extra long service life.



Features & Benefits

  • Can be filled from a bulk supply of grease - Economical & contamination free greasing
  • 9mm diameter hand operated Filler / Bleeder Outlet - For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
  • Reversible follower - For cartridge or bulk applications
  • Lock the plunge rod into the follower - For easier bleeding
  • Machined barrel thread - Makes it easier to screw the barrel to the head
  • Stepped Barrel - For easy grip
  • Heavy-duty design and construction - Reduces wear & facilitates effortless pressure building
  • Short stroke facility - Ability to boost greasing pressure using shorter hand strokes to easily clear blocked grease nipples
  • Screw fasteners - No rivets for easy servicing
  • Pistol grip and unique piston and valve arrangement - For easy one handed operation
  • Flexible high pressure extension hose - Easier to grease hard to reach nipples
  • Fully repairable - Provides a much longer service life
  • Supergrip KY coupler - Positive no leak connection ensures grease gets to the bearing.



Technical Specifications

  • Delivery pressure up to 68,900kPa (10,000psi)
  • Flexible 230mm (9") high pressure extension hose
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.68g per shot
  • Heavy-duty 1.6mm thick barrel
  • Robust zinc pull handle
  • Wetted parts - Aluminium, steel, nitrile rubber, cork and nylon
  • Maximum viscosity - Up to NLGI 2
  • Compatible with 400g cartridges for contamination free greasing



Package Includes

  • K32 FLEXIGUN® 400g Grease Gun
  • Flexible 230mm (9") high pressure extension hose
  • KY SUPERGRIP™ 3 jaw high pressure coupler
K29 FLEXIGUN® 450g Greasing Kit

Product Overview

The K29 FLEXIGUN® Greasing Kit is the complete package, featuring a classic Macnaught K29 Grease Gun that incorporates a unique variable stroke piston and valve arrangement for true ‘one handed’ operation. The push in handle is easy to use and requires much less effort to operate. Increased pressure can be produced by short strokes (low volume) or high volume using a long stroke (low pressure). Heavy duty pistol grip construction with comfortable ergonomics to suit 450g grease cartridges, bulk filling or Macnaught J3 grease transfer pump loading. The K29 is fully repairable with a strong die cast head and heavy gauge steel barrel for extra long service life.



Features & Benefits

  • Can be filled from a bulk supply of grease - Economical & contamination free greasing
  • 9mm diameter hand operated Filler / Bleeder Outlet - For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
  • Reversible follower - For cartridge or bulk applications
  • Lock the plunge rod into the follower - For easier bleeding
  • Machined barrel thread - Makes it easier to screw the barrel to the head
  • Stepped Barrel - For easy grip
  • Heavy-duty design and construction - Reduces wear & facilitates effortless pressure building
  • Short stroke facility - Ability to boost greasing pressure using shorter hand strokes to easily clear blocked grease nipples
  • Screw fasteners - No rivets for easy servicing
  • Pistol grip and unique piston and valve arrangement - For easy one handed operation
  • Flexible high pressure extension hose - Easier to grease hard to reach nipples
  • Fully repairable - Provides a much longer service life
  • Supergrip KY coupler - Positive no leak connection ensures grease gets to the bearing.



Technical Specifications

  • Delivery pressure up to 68,900kPa (10,000psi)
  • KF17 430mm (17") high pressure flexible extension
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.68g per shot
  • Heavy-duty 1.6mm thick barrel
  • Robust zinc pull handle
  • Wetted parts - Aluminium, steel, nitrile rubber, cork and nylon
  • Maximum viscosity - Up to NLGI 2
  • Compatible with 450g cartridges for contamination free greasing



Package Includes

  • 1 x K29 FLEXIGUN® Grease Gun
  • 2 x KY SUPERGRIP™ coupler
  • 1 x KF17 430mm (17") high pressure flexible extension
  • 1 x KIN injector needle
  • 1 x KZDXL straight point coupler
  • 1 x KDR right angle coupler (incl SUPERGRIP™ coupler)
  • 1 x 450g FLEXIBLUE® EP2 grease cartridge
  • 1 x Hard plastic carry case
