SKU:- SP61063 | Part Number:- SP61063
Sale price
$125.00
Regular price

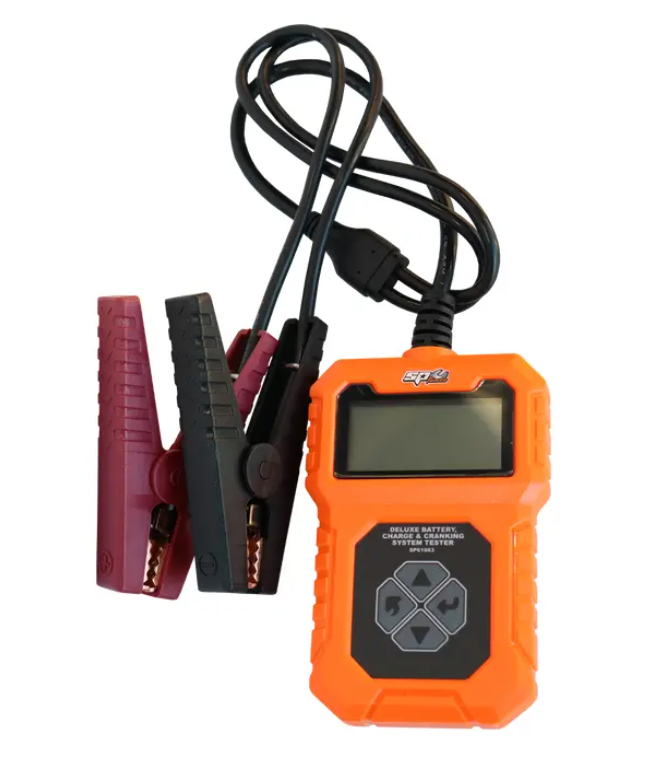

The SP Tools SP61063 Battery Service Charge and Cranking System Tester is a multifunction diagnostic tool capable of testing battery condition, cranking performance, and charging system health across 12-volt vehicle systems. Test results are based on CA, CCA, BCI, MCA, JIS, SAE, EN, GB, DIN, and IEC standards, and it analyses the cranking system for cranking time, voltage, and status, as well as the charging system for load voltage, unloaded voltage, ripple status, and overall charging system condition. Results are displayed on a backlit LCD screen, stored digitally for PC printing, and returned as a simple Good or Replace outcome with built-in protection against short circuit and reverse connection.
- � Test the battery CCA and the state of health
- � Quickly input battery Ah value to test batteries in batches
- � Test cranking system and charging system of vehicles with out damaging the battery performance
- � Analysis result: Good or replace
- � Built-in protection of short circuit and reverse connection
- � Test results based on CA, CCA, BCI, MCA, JIS, SAE, EN, GB, DIN & IEC standards
- � Multilingual interfaces
- � Vehicle cranking system test - cranking time, voltage & status
- � Vehicle charging system test - load voltage, unloaded voltage, ripple status & charging system status
- � Digitally store most recent test result - print from PC
- � Display: Backlit LCD screen
- � Operating Temperature: -10 to 60�C
- � Storage Temperature: -20 to 70�C
- � System voltage: 12 volts
- � Input voltage range: 8v-30v
