Skip to product information
In stock
SKU:- TM32310 | Part Number:- 32310
Sale price
$57.91
Regular price

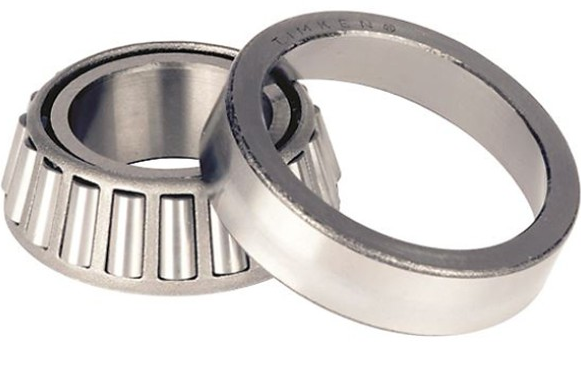

The Timken TM32310 Bearing Set BPW - Outer Bearing is a metric tapered roller bearing set comprising the matched X32310M cone and Y32310M cup for reliable performance in trailer, axle, and industrial applications. Made to support combined radial and axial loads, it features optimized internal geometry that helps reduce operating temperatures and torque while promoting longer lubrication life. Its power-dense design allows it to handle heavy loads, and the matched cone and cup ensure accurate fitment and dependable operation. Engineered to Timken quality standards, it is suitable for OEM replacement and demanding service conditions.
� Series: 32310
- � Cone Part Number: X32310M
- � Cup Part Number: Y32310M
- � Metric bearing
Dimensions
� Bore Diameter (d): 50 mm
- � Outside Diameter (D): 110 mm
- � Overall Width (T): 42.25 mm
- � Inner Ring Width (B): 40 mm
- � Outer Ring Width (C): 33 mm
- � Effective Centre Location: -14.2 mm
- � Maximum Shaft Fillet Radius: 2.54 mm
- � Maximum Housing Fillet Radius: 2.03 mm
- � Shaft Backing Shoulder Diameter - Front Face (da): 60 mm
- � Shaft Backing Shoulder Diameter - Back Face (db): 65 mm
- � Housing Backing Shoulder Diameter - Front Face (Da): 103.89 mm
- � Housing Backing Shoulder Diameter - Back Face (Db): 95 mm
- � Cage Location Relative to Back Face (Aa): 3.8 mm
- � Cage Location Relative to Front Face (Ab): 3.6 mm
Load Ratings
� Dynamic Radial Load Rating (C1): 187,000 N
- � Dynamic Radial Load Rating (C90): 48,400 N
- � Dynamic Axial Load Rating (Ca90): 28,600 N
- � Static Radial Load Rating (C0): 211,000 N
- � e Factor: 0.35
- � K Factor: 1.69
- � Y Factor: 1.74
Factors
� G1 Factor: 60.6
- � G2 Factor: 16
- � Geometry Factor (Cg): 0.0965
Features
� Matched cone and cup bearing set
- � Optimized internal geometry for reduced torque and operating temperatures
- � Power-dense design for high load capacity
- � Suitable for combined radial and axial loads
- � Available for demanding and OEM replacement applications
Application
� BPW outer bearing applications
- � Trailer axles
- � Automotive and industrial machinery
