SKU:- K026427 | Part Number:- K026427
Sale price
$1,279.26
Regular price

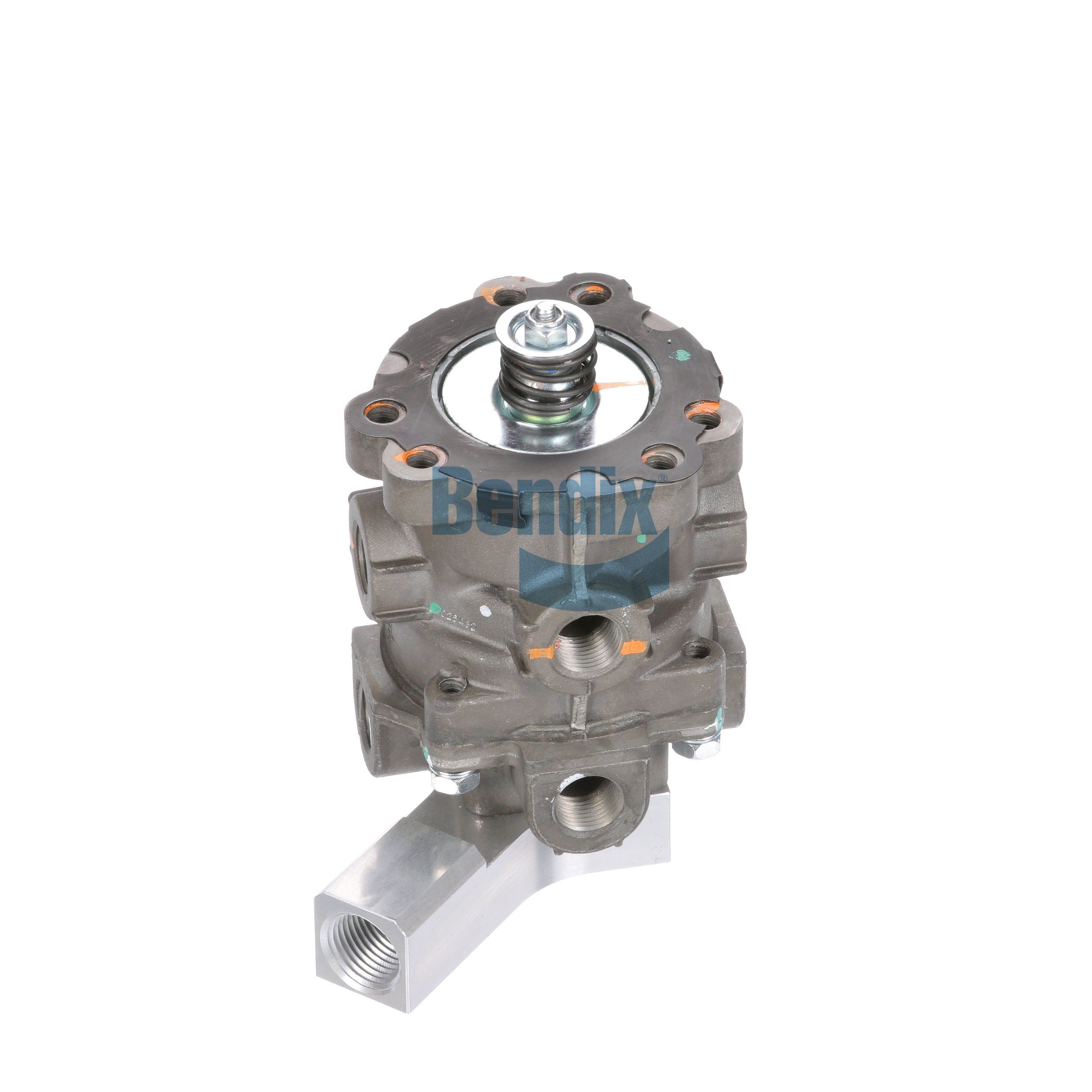

The Bendix E6 Valve - Special Freightliner is an E-6 foot brake valve used to control service brakes in heavy-duty truck air brake systems. The unit features dual delivery circuits with 3/8-18 NPT ports for 21 and 22, and dual 3/8-18 NPT supply ports for 11 and 12, providing flexible plumbing options in Freightliner and other commercial vehicle installations. A 1/2-14 NPT exhaust port with 90 degree elbow manages exhaust air, while the valve body mounts via three 5/16-18 UNC-3B threaded points. The valve operates with a 3.0 psi differential pressure and uses a rubber graduation spring for consistent modulation. It functions in ambient temperatures from -40 deg F to 200 deg F, meeting FMVSS 121 requirements for air brake performance. Supplied without a pedal or mounting plate, it is intended as an aftermarket new replacement component for existing E-6 style foot brake valve assemblies in fleet and workshop maintenance programs.
- - Differential Pressure: 3 psi - Exhaust Port Thread Size: 1/2-14 NPT - Delivery 21 Port Thread Size: 3/8-18 NPT - Delivery 22 Port Thread Size: 3/8-18 NPT - Supply 11 Port Thread Size: 3/8-18 NPT - Supply 12 Port Thread Size: 3/8-18 NPT - Minimum Operating Temperature: -40 �F (-40 �C) - Maximum Operating Temperature: 200 �F (93 �C) - Length: 107.95 mm - Width: 105.66 mm - Height: 141.73 mm - Used as an E-6 foot brake valve in heavy-duty truck air brake systems
- - Suits Freightliner and other commercial truck applications
- - Provides primary brake control via foot-operated valve in air brake circuits
- - Features 3/8-18 NPT delivery ports for circuits 21 and 22
- - Includes 3/8-18 NPT supply ports for circuits 11 and 12
- - Exhaust port uses 1/2-14 NPT thread with 90 degree elbow configuration
- - Operates with a differential pressure of 3.0 psi for controlled braking response
- - Graduation spring uses rubber spring construction
- - Functions reliably from -40 deg F to 200 deg F operating temperature range
- - Valve body mounts using 5/16-18 UNC-3B threaded fasteners (3 positions)
- - Supplied without pedal, allowing use with existing vehicle pedal assemblies
- - Port configuration is axial/perpendicular to suit common chassis layouts
- - Complies with FMVSS 121 regulatory requirements for air brake systems
- - Not waterproof, intended for protected mounting locations on the vehicle
- - Supplied as an aftermarket new component for service replacement
- - Backed by a 1-year warranty period and 100,000 mile warranty coverage
