SKU:- ZFGFS19536 | Part Number:- FS19536
Sale price
$35.18
Regular price

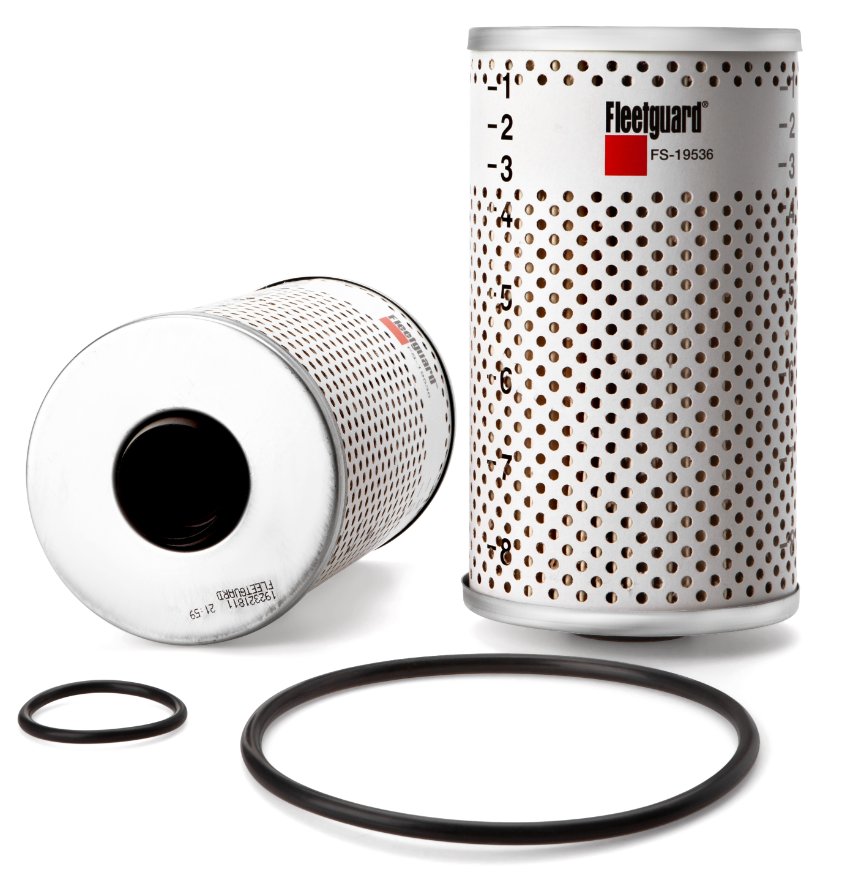

The Fleetguard FS19536 is a cartridge fuel/water separator built on StrataPore synthetic media for service-replaceable housings. The 172.08 mm element with a 97.03 mm OD, 16.76 mm end-1 ID and 32.51 mm largest end ID supports 5.67 L/min rated flow, 98.7% TWA efficiency at 5 microns to SAE J1985, 99% primary particle efficiency and 90% emulsified water separation. A gasket package is supplied, with OE service typical on heavy-duty highway tractor fuel systems.
- Type: Fuel/Water Separator, Cartridge, StrataPore
- Length: 172.08 mm (6.78 in)
- Largest OD: 97.03 mm (3.82 in)
- End 1 ID: 16.76 mm (0.66 in)
- Largest End ID: 32.51 mm (1.28 in)
- End 2 OD: 97.03 mm (3.82 in)
- Rated Flow: 5.67 L/min
- Micron Rating by SAE J1985: 5.00 micron
- Efficiency, TWA by SAE J1985: 98.7%
- Primary Particle Efficiency: 99%
- Emulsified Water Separation: 90%
- Media Type: StrataPore
- Comment: Includes gasket package
- Applicable Region: North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America
