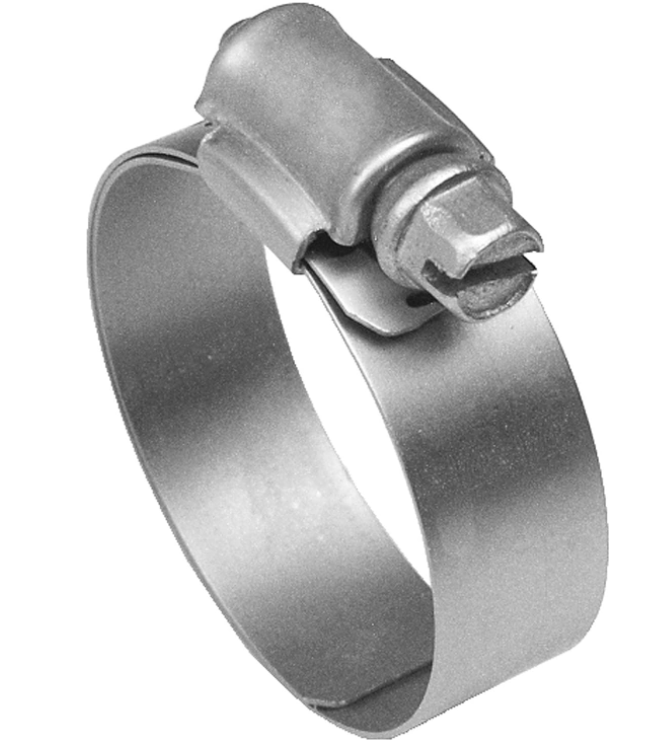

The Gates Hose Clamp - S/S 22-32MM 32312 is a stainless steel silicone hose clamp used to secure coolant and other soft-wall hoses on heavy-duty trucks, buses and vehicular equipment. This clamp uses a 300 series stainless steel band, screw and housing to resist corrosion and withstand demanding under-bonnet conditions. It is an SAE size 12 clamp with a clamping range from 0.875 to 1.25 inches, matching typical 5/8 to 3/4 inch silicone hose sizes, and features a wide 9/16 inch band to increase clamping surface on soft hose materials. The inner liner band is engineered to prevent hose cover extrusion, while the four-piece, 100% mechanical interlock construction maintains strength and torque capacity. A 5/16 inch hex head screw with deep slot allows tightening with a screwdriver, nut driver or socket. Supplied in boxes of 10, the clamp is suited to cooling system and general engine bay hose connections where a secure, durable silicone hose clamp is required.
- Clamp Type: Silicone hose clamp
- SAE Size: 12
- Clamp Minimum Diameter: 0.875 in
- Clamp Maximum Diameter: 1.25 in
- Fits Hose I.D.: 5/8 to 3/4 in
- Band Width: 0.5625 in (9/16 in)
- Band Material: 300 series stainless steel
- Housing Material: Stainless steel
- Screw Type: 5/16 in hex head with deep slot
- Recommended Torque: 3040 inlb
- Maximum Torque: 60 inlb
- Product Weight: 0.06 lb (per clamp) - Suits heavy-duty trucks, buses and other vehicular equipment using silicone coolant or heater hoses
- Functions as a silicone hose clamp for cooling system and general engine bay hose connections
- 300 series stainless steel band, screw and housing for corrosion resistance in harsh environments
- Wide 9/16 inch (approx. 14 mm) band for increased clamping surface on soft silicone hose
- SAE size 12 with clamping range from 0.875 to 1.25 inches for common 5/8 to 3/4 inch hose sizes
- Inner liner band construction to prevent hose cover extrusion on soft-wall silicone hose
- Four-piece, 100% mechanical interlock design to maintain clamp integrity under load
- Combination 5/16 inch hex head with deep slot screw for use with screwdriver, nut driver or socket
- Stainless construction and robust design support long service life with minimal maintenance
- Recommended torque range of 3040 in-lb to achieve correct sealing without over-tightening
- Suitable for routine hose service where secure, repeatable clamping of silicone hose is required
- Inspect hose and clamp area at regular service intervals for signs of leakage, damage or hose degradation
