In stock
SKU:- ZST3434095 | Part Number:- 3434095
Sale price
$93.92
Regular price

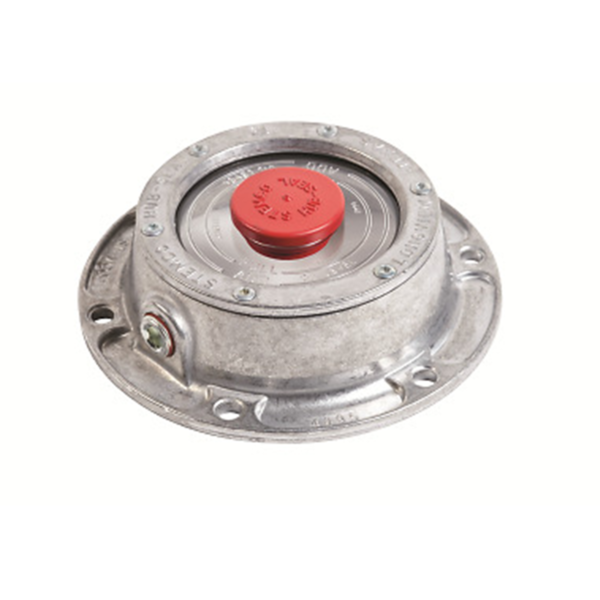

The Stemco Hub Cap Oil Filled Axle Fg931 Acco is a 6-bolt cast aluminium oil hub cap designed to protect steer axle wheel ends while allowing easy oil level inspection. Constructed from strong cast aluminium, it resists warpage and offers effective heat dissipation, supporting reliable operation in demanding heavy-duty truck applications. The hub cap features a clear window with advanced glass material that withstands higher temperatures before discolouring or deforming, along with Stemco�s distinct red rubber side pipe plug for convenient oil filling and venting. Key dimensions include an overall height of approximately 1-13/16 in (1.81 in overall depth), a 5.50 in bolt circle, 5/16 in (0.31 in) mounting bolt size, 4-9/16 in (4.56 in) flange inner diameter, and 6-3/16 in (6.18 in) flange outer diameter. Supplied with a 330-3009 gasket, this hub cap is configured for steer axle use and provides secure, leak-resistant wheel end protection for oil bath hub systems.
- Overall Depth: 1.81 in - Hubcap Height: 1-13/16 in - Hubcap Inside Depth: 1-1/16 in - Flange Inner Diameter: 4.56 in - Flange Outer Diameter: 6.18 in - Hubcap Flange I.D.: 4-9/16 in - Hubcap Flange O.D.: 6-3/16 in - Bolt Circle Diameter: 5.50 in - Mounting Bolt Size: 0.31 in (5/16 in) - Mounting Hole Count: 6 - Hub Cap Type: Bolt on - Hubcap Type: Oil - Application: Steer axle - Hubcap Material: Cast aluminium - Primary Material: Aluminium - Clear Window Equipped: Yes - Gasket Part Number: 330-3009 - Window Kit Part Number: 359-5995 - VMRS Code: 018003003 - Alternate VMRS Code: 018004029 - Suits steer axle applications on heavy-duty trucks and trailers
- Oil bath hub cap for lubricated wheel end systems
- 6-bolt bolt-on design with 5.50 in bolt circle for secure mounting
- Cast aluminium hub cap body for strength and resistance to warpage
- Clear window with advanced material for visual oil level inspection
- Window material withstands higher temperatures before discolouring or deforming
- Distinct red rubber side plug for venting and easy identification
- Flange inner diameter 4.56 in and outer diameter 6.18 in for common hub sizes
- Overall depth 1.81 in with inside depth 1-1/16 in for compact wheel end packages
- Supplied with 330-3009 gasket for correct sealing to the hub face
- Provides protection against rust, corrosion and contamination entering the hub
- Supports consistent wheel rotation by maintaining correct lubrication
- Suitable for use in demanding on-road and fleet operations
- Install using six 5/16 in bolts through existing hub pattern and fit gasket as specified
- Check oil level through window and top up via side pipe plug as required
