SKU:- 24063BX | Part Number:- 24063BX
Sale price
$100.35
Regular price

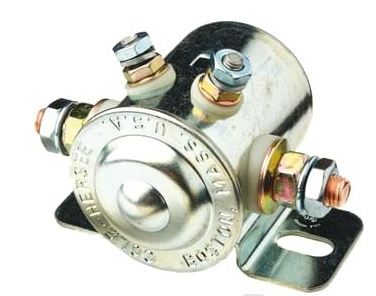

The Cole Hersee 24V 85A Continuous Duty Solenoid (4063-BX) is a heavy-duty, reliable switching solution built for 24V systems that demand sustained high-current performance without compromise. Rated to carry 85 amps continuously, the normally open SPST design features insulated coil terminals that electrically isolate the studs from the plated steel housing, reducing wear and keeping maintenance to a minimum. Two large 5/16"-24 copper power studs and two #10-32 coil studs handle the load with ease, while the flat bracket and included nuts and lock washers make for a straightforward, secure installation. Suited for starter isolation, winch circuits, accessory control, and high-current switching across commercial vehicles, agricultural machinery, and marine applications.
- Voltage: 24V
- Current rating: 85A continuous
- Circuitry: SPST
- Contacts: Copper
- Normal position: Normally open
- Housing: Plated steel
- Battery studs: 2x copper stud (5/16"-24)
- Coil studs: 2x steel stud (10-32)
- Operating temperature: -40°C to +85°C
- Centre to centre: 56mm
- Dimensions: 46.5 x 64 x 84mm
