SKU:- TM28584 | Part Number:- 28584
Sale price
$61.70
Regular price

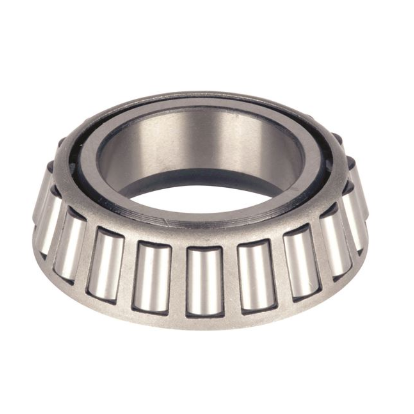

The Timken TM28584 Tapered Roller Bearing Single Cone is an imperial cone component designed for use with compatible Timken tapered roller bearing cups in automotive and industrial applications. Made to support combined radial and axial loads, it is typically installed in opposing pairs on a shaft to provide reliable support and accurate bearing adjustment. The separable cone design allows for easier installation and maintenance while delivering dependable performance in demanding operating conditions. Manufactured to Timken quality standards, it is suitable for OEM replacement and service applications.
� Bearing Style: Imperial
- � Cone Part Number: 28584
- � Separable inner ring component
Dimensions
� Bore Diameter (d): 52.388 mm
- � Inner Ring Width (B): 25.4 mm
- � Effective Centre Location: -4.8 mm
- � Maximum Shaft Fillet Radius: 3.6 mm
- � Shaft Backing Shoulder Diameter - Front Face (da): 58 mm
- � Shaft Backing Shoulder Diameter - Back Face (db): 65 mm
- � Cage Location Relative to Back Face (Aa): 1 mm
- � Cage Location Relative to Front Face (Ab): 1.5 mm
Load Ratings
� Dynamic Radial Load Rating (C1): 98,900 N
- � Dynamic Radial Load Rating (C90): 25,700 N
- � Dynamic Axial Load Rating (Ca90): 16,600 N
- � Static Radial Load Rating (C0): 130,000 N
- � K Factor: 1.55
Factors
� G1 Factor: 46.4
- � G2 Factor: 22.6
- � Geometry Factor (Cg): 0.0912
Features
� Single cone tapered roller bearing component
- � Designed for use with compatible Timken cups
- � Supports combined radial and axial loads when matched with cup assembly
- � Separable design for easier installation and servicing
Related Products
� Timken TS28521 - Tapered Roller Bearings - Single Cups - Imperial
- � Timken TS28520 - Tapered Roller Bearings - Single Cups - Imperial
Application
� Tapered roller bearing assemblies
- � Automotive and industrial shaft applications
- � Replacement bearing cone applications
