SKU:- TMJLM506849 | Part Number:- JLM506849
Sale price
$54.68
Regular price

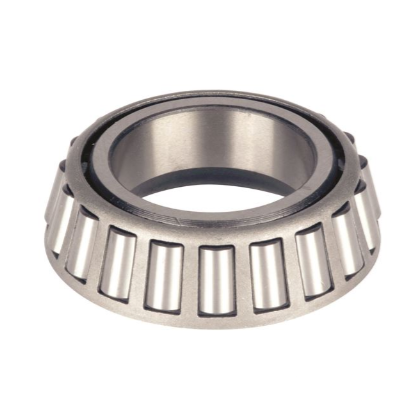

The Timken TMJLM506849 Tapered Roller Bearing Single Cone is a metric cone component designed for use with compatible Timken tapered roller bearing cups in automotive and industrial applications. Made to support combined radial and axial loads, it is typically installed in opposing pairs on a shaft to provide reliable support and accurate bearing adjustment. The separable cone design allows for easier installation and maintenance while delivering dependable performance in demanding operating conditions. Manufactured to Timken quality standards, it is suitable for OEM replacement and service applications.
� Bearing Style: Metric
- � Cone Part Number: JLM506849
- � Separable inner ring component
Dimensions
� Bore Diameter (d): 55 mm
- � Inner Ring Width (B): 23 mm
- � Effective Centre Location: -2.8 mm
- � Maximum Shaft Fillet Radius: 1.52 mm
- � Shaft Backing Shoulder Diameter - Front Face (da): 62 mm
- � Shaft Backing Shoulder Diameter - Back Face (db): 65 mm
- � Cage Location Relative to Back Face (Aa): 0.5 mm
- � Cage Location Relative to Front Face (Ab): 2 mm
Load Ratings
� Dynamic Radial Load Rating (C1): 109,000 N
- � Dynamic Radial Load Rating (C90): 28,200 N
- � Dynamic Axial Load Rating (Ca90): 19,400 N
- � Static Radial Load Rating (C0): 123,000 N
- � K Factor: 1.45
Factors
� G1 Factor: 45.6
- � G2 Factor: 20.4
- � Geometry Factor (Cg): 0.0925
Features
� Single cone tapered roller bearing component
- � Designed for use with compatible Timken cups
- � Supports combined radial and axial loads when matched with cup assembly
- � Separable design for easier installation and servicing
Related Products
� Timken JLM506810 - Tapered Roller Bearings - Single Cups - Metric
- � Timken JLM506811 - Tapered Roller Bearings - Single Cups - Metric
Application
� Tapered roller bearing assemblies
- � Automotive and industrial shaft applications
- � Replacement bearing cone applications
