SKU:- 103510
Sale price
$52.95
Regular price

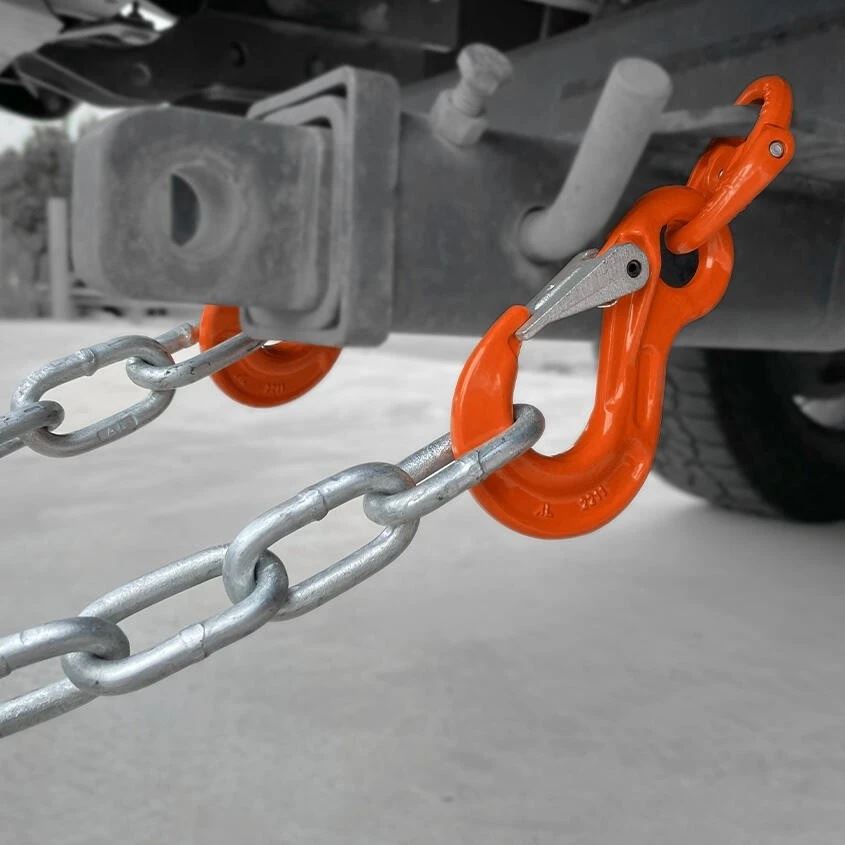

The Auslift 103510 Trailer Safety Chain Hook Set 10mm is a CTA-approved trailer safety chain kit rated to a 6.4-tonne ATM, conforming to AS3776-2015, AS4177.4, and ADR6202. Each kit includes two Eye Sling Hooks and two Chain Connectors for use with 13mm trailer chain, with a minimum breaking force of 12,800 kg based on a 4:1 safety factor as per AS3775.2. The hooks feature an innovative QUICKLOCK� Rubber Grip design - simply push the pin into the collar with your thumb, no tools required, for fast and secure installation.
- � Size: 10mm
- � Suitable Trailer Chain: 13mm
- � ATM (Maximum Towing Capacity): 6.4 tonne
- Contents

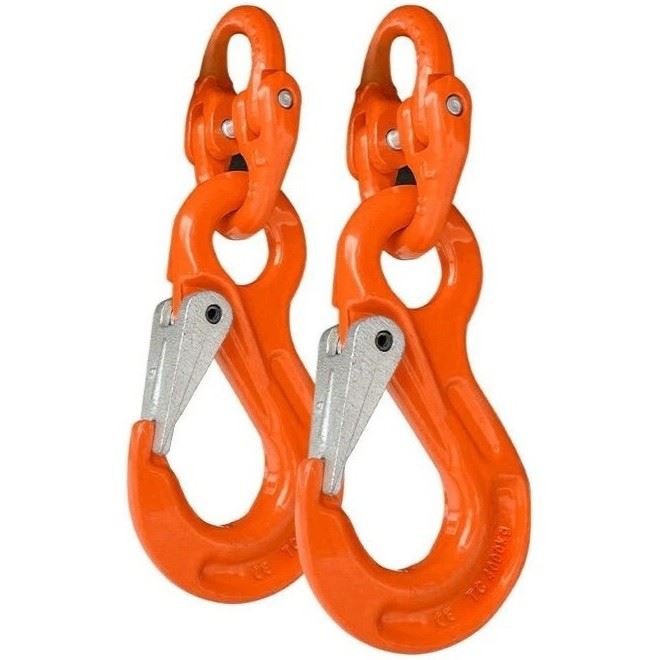

- � 2 x Eye Sling Hooks (QUICKLOCK� Rubber Grip)
- � 2 x Chain Connectors
- Ratings
- � Tow Capacity: 6.4T
- � Minimum Breaking Force: 12,800 kg (4:1 safety factor per AS3775.2)
- � Chain Breaking Strength: 5,261.73 kg (13mm chain per AS4177)
- � Shackle WLL: 1,000 kg (Grade 30)
- � Shackle Breaking Strength: 5.95 tonne
- ATM Rating by Chain Grade
- � 13mm / 16mm Grade 80 or Grade 100 chain: ATM 3,500 kg � 6,400 kg
- � Standard 13mm Grade 30 transport chain: ATM 3,000 kg � 3,500 kg
- Standards & Approvals
- � AS3776-2015
- � AS4177.4
- � ADR6202
- � CTA Approved
