SKU:- ZFGAF1606KM | Part Number:- AF1606KM
Sale price
$75.11
Regular price

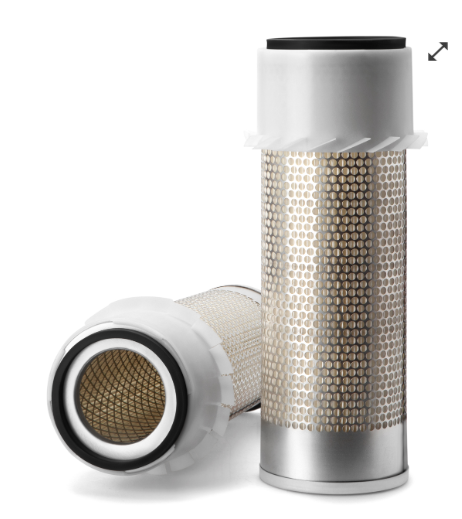

The Fleetguard AF1606KM Magnum primary air filter is a cellulose-media axial-seal element tested to ISO 5011, designed to capture airborne contaminants before they reach the combustion chamber. The filter measures 391.60 mm in length with a 133.10 mm largest outer diameter and is supplied with the 3311624 bolt seal so the housing seals correctly during installation. It is suited to backhoe, loader and harvester applications. The AF1606KM pairs with AH19063 or AH19064 air housings and is used with the AF1892 secondary air filter.
- Type: Air Filter, Primary, Magnum
- Seal Type: Axial
- Media Type: Cellulose
- Length: 391.60 mm (15.40 in)
- Largest OD: 133.10 mm (5.24 in)
- Fin Diameter: 161.00 mm (6.34 in)
- End 2 OD: 133.10 mm (5.24 in)
- End 2 ID: 17.00 mm (0.67 in)
- End 1 ID: 80.60 mm (3.17 in)
- Efficiency Test Std: ISO 5011
- Included with Filter: 3311624 Bolt Seal
- Used With: AH19063, AH19064 (housings); AF1892 (primary air filter used with)
- Applicable Region: North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America
