SKU:- ZFGFS1251 | Part Number:- FS1251
Sale price
$47.45
Regular price

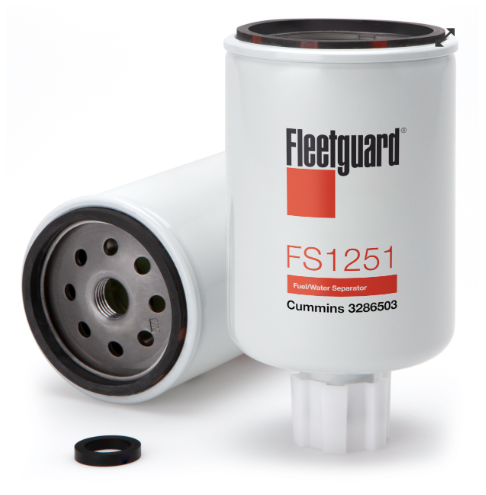

The Fleetguard FS1251 is a spin-on fuel/water separator with an M16 x 1.5-6H internal thread and an internal standpipe. The 142.90 mm body, 76.71 mm OD and 69.09 / 62.48 mm gasket footprint support 75.00 L/min rated flow with 96% efficiency at 17.3 microns and 90% emulsified water separation, tested to ISO TR13353. Typical service covers medium- and heavy-duty trucks, walk-in vans and motorhome chassis across North America, China, Europe and the South Pacific.
- Type: Fuel/Water Separator, Spin-On
- Length: 142.90 mm (5.63 in)
- Largest OD: 76.71 mm (3.02 in)
- Thread Size: M16 x 1.5-6H INT
- Gasket OD: 69.09 mm (2.72 in)
- Gasket Inside Diameter: 62.48 mm (2.46 in)
- Standpipe: Yes
- Rated Flow: 75.00 L/min (19.81 gpm)
- Primary Particle Efficiency: 17.30 micron (c) @ 96%
- Emulsified Water Separation: 90%
- Test Specification: ISO TR13353
- Applicable Region: North America, China, Europe, South America, South East Asia, South Pacific, Others, Mexico and Central America
