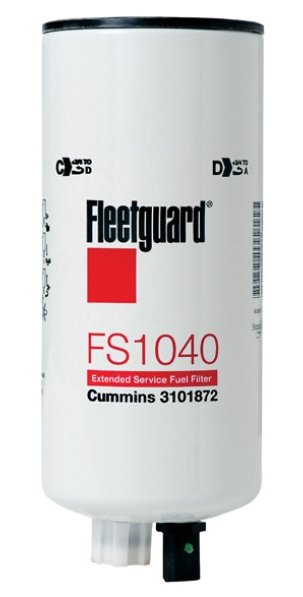

The Fleetguard FS1040 is a long-bodied spin-on fuel/water separator built on StrataPore synthetic media with an M85 x 2 internal thread and no internal standpipe. The 293.98 mm body, 118.11 mm OD and 118.87 / 101.60 mm gasket footprint support 98.7% efficiency at 20.9 microns and 95% emulsified water separation. A combination Water-In-Fuel sensor and drain valve protect suction-side fuel systems on Class 8 long-haul and other heavy-duty diesel platforms.
- Type: Fuel/Water Separator, Spin-On
- Length: 293.98 mm (11.57 in)
- Largest OD: 118.11 mm (4.65 in)
- Thread Size: M85 x 2-7H INT
- Gasket OD: 118.87 mm (4.68 in)
- Gasket Inside Diameter: 101.60 mm (4.00 in)
- Standpipe: No
- Primary Particle Efficiency: 20.90 micron (c) @ 98.7%
- Emulsified Water Separation: 95%
- Media Type: StrataPore
- Comment: Suction-side fuel with combination WIF sensor and drain valve
- Applicable Region: North America, China, Europe, South America, South East Asia, South Pacific, Others, Mexico and Central America
