In stock
SKU:- ZFGHF6107 | Part Number:- HF6107
Sale price
$49.29
Regular price

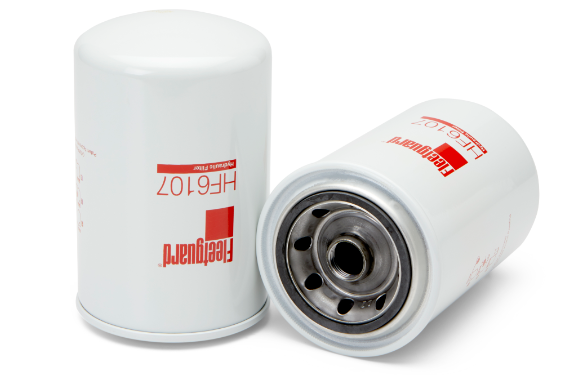

The Fleetguard HF6107 is a 3/4-16 UNF spin-on hydraulic filter built on cellulose media for general-duty hydraulic protection. The 151.89 mm body with 93.37 mm OD delivers 32.8 micron at Beta=75 and 39.7 micron at Beta=200 along with TWA ratings of 11 micron at Beta=2 and 41 micron at Beta=75. The no-standpipe construction supports straightforward installation. Typical fitments include heavy-duty trucks and mining and severe-service equipment across multiple global service regions.
- Type: Hydraulic Filter, Spin-On
- Length: 151.89 mm (5.98 in)
- Largest OD: 93.37 mm (3.68 in)
- Thread Size: 3/4-16 UNF-2B
- Gasket OD: 69.34 mm (2.73 in)
- Gasket Inside Diameter: 62.00 mm (2.44 in)
- Standpipe: No
- Particle Size at Beta 75: 32.80 micron (c)
- Particle Size at Beta 200: 39.70 micron (c)
- TWA Micron @ Beta=2: 11.00 micron
- TWA Micron @ Beta=75: 41.00 micron
- Media Type: Cellulose
- Applicable Region: North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America
