SKU:- ZFGFS19765 | Part Number:- FS19765
Sale price
$63.74
Regular price

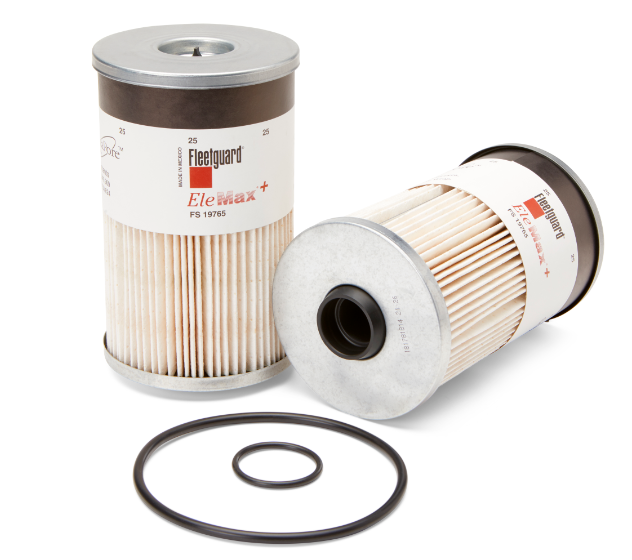

The Fleetguard FS19765 is the plus-size EleMax fuel/water separator cartridge for Davco Fuel Pro FH230 Series (extended service intervals) or FH234 Series Industrial Pro (standard service). Rated to 95% free and emulsified water separation, 25 micron rating and 98.7% TWA efficiency to SAE J1985. The 179 mm element with 107 mm OD is OE service for Class 8 long-haul and severe-service trucks.
- Type: Fuel/Water Separator, Cartridge, EleMax
- Length: 178.79 mm (7.04 in)
- Largest OD: 106.93 mm (4.21 in)
- End 1 ID: 16.76 mm (0.66 in)
- End 2 OD: 106.93 mm (4.21 in)
- Standpipe: No
- Micron Rating by SAE J1985: 25.00 micron
- Efficiency, TWA by SAE J1985: 98.7%
- Free Water Separation: 95.00%
- Emulsified Water Separation: 95.00%
- Media Type: StrataPore
- Comment: Plus-size version of FS19728 for Extended Service Intervals when used in FH230 Series Fuel Pro's, or standard service for FH234 Series Industrial Pro
- Applicable Region: North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America
