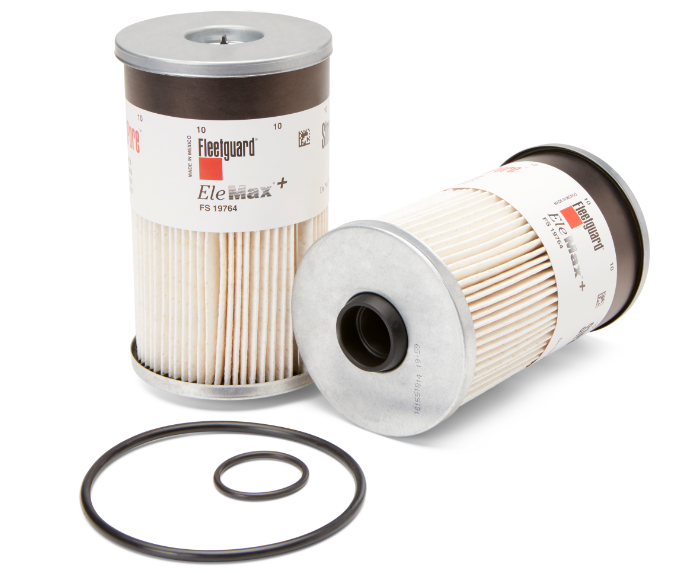

The Fleetguard FS19764 is the plus-size EleMax fuel/water separator cartridge for Davco Fuel Pro FH230 Series (extended service interval) or FH234 Series Industrial Pro (standard service). Rated to 11.36 L/min flow with 95% free and emulsified water separation and 98.7% TWA efficiency. The 172 mm element with 107 mm OD is OE service for late-model Class 8 long-haul and severe-service trucks.
- Type: Fuel/Water Separator, Cartridge, EleMax
- Length: 172.47 mm (6.79 in)
- Largest OD: 106.93 mm (4.21 in)
- End 1 ID: 16.76 mm (0.66 in)
- Largest End ID: 32.51 mm (1.28 in)
- End 2 OD: 106.93 mm (4.21 in)
- Rated Flow: 11.36 L/min
- Efficiency, TWA by SAE J1985: 98.7%
- Free Water Separation: 95.00%
- Emulsified Water Separation: 95.00%
- Primary Particle Efficiency: 98.7%
- Media Type: StrataPore
- Comment: Plus-size version of FS19727 for Extended Service Intervals when used in FH230 Series Fuel Pro's, or standard service for FH234 Series Industrial Pro
- Applicable Region: North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America
