SKU:- OR102626X | Part Number:- 102626X
Sale price
$146.78
Regular price

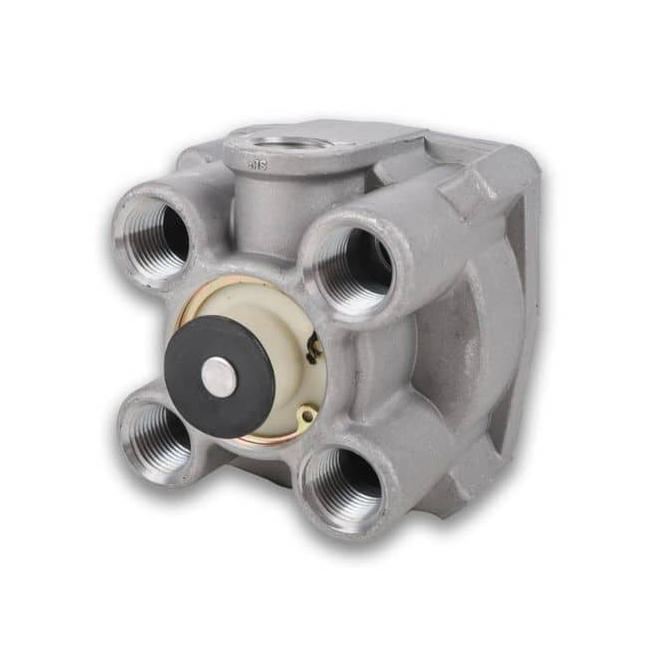

The Bendix Genuine R-12 Valve With Bracket 102626X is a remanufactured R-12 air brake relay valve used to speed up application and release of rear service brakes on heavy vehicles. This coreless valve features a 1/2 inch NPT supply port feeding four 1/2 inch NPT vertical delivery ports, with a 1/4 inch NPT control port and a 4 psi crack pressure to provide consistent, predictable operation. The metal body is built to handle high system pressures and continuous duty, and is supplied with a universal or dedicated mounting bracket using .96 x .40 inch slotted holes for flexible frame or reservoir mounting. Operating temperature range is -40 °F to 200 °F, suiting a wide range of on-road conditions. By locating the valve close to the rear brake chambers, the R-12 valve reduces line length and improves response in truck and trailer air brake systems where reliable braking performance is required.
- - Supply Port Size: 1/2 in NPT
- - Delivery Ports: 4 x 1/2 in NPT vertical ports
- - Control / Service Port Size: 1/4 in NPT
- - Crack Pressure: 4 psi
- - Operating Temperature Minimum: -40 �C
- - Operating Temperature Maximum: 93 �C
- - Height: 98 mm
- - Length: 101 mm
- - Width: 101 mm
- - Weight: 3.09 lb - Used in heavy-duty truck and trailer air brake systems as an R-12 relay valve between the service reservoir and rear service brakes
- - Suitable for frame or reservoir mounting on long wheelbase vehicles where faster rear brake response is required
- - 1/2" NPT supply port with four 1/2" NPT vertical delivery ports for high-capacity air flow
- - 1/4" NPT control/service port with 4 psi crack pressure for consistent, predictable brake application
- - Coreless remanufactured construction with metal body for durability under high pressure and frequent operation
- - Operating temperature range from -40 �C to 93 �C (-40 �F to 200 �F) for use in varied Australian conditions
- - Supplied with universal or dedicated mounting bracket and slotted holes (.96" x .40") to suit common mounting patterns
- - Vertical port body configuration (1 supply / 4 delivery) to match standard Bendix R-12 layouts
- - Supports fast application and release of rear axle brakes by minimising air line length to the chambers
- - Helps maintain reliable pressure transfer in air brake circuits for consistent stopping performance
- - Remanufactured to meet or exceed OEM functional specifications for form, fit and operation
- - Compatible with Bendix R-12 service kits such as 102802K for in-service maintenance
