In stock
SKU:- STM0723G | Part Number:- 0723G
Sale price
$29.55
Regular price

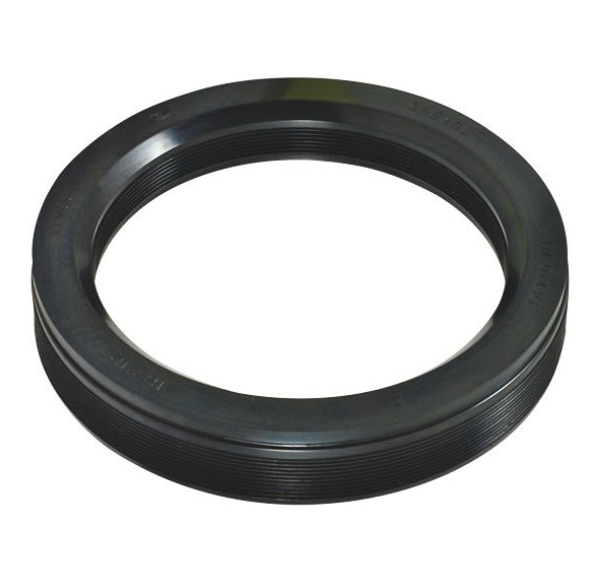

The Stemco Hub Seal - Parallel Bearings (TP) Grease is a trailer hub grease seal engineered for TP/HP parallel spindle trailer axles running tapered bearings. This seal, identified as STM-0723G and commonly paired with inner bearing HM518445 and bearing combination 518410 / 518445, is used on Fruehauf Pro-Par and other TP/HP parallel spindle trailer applications. It is a grease-only hub and wheel seal, installed by hand with no special tools required, and built to Stemco tolerance specifications to support consistent sealing performance between service intervals. The seal features an outside diameter of 150 mm, an inside diameter of 107 mm and a depth of 27 mm, matching common Set 415 hub dimensions. It is specified as a 4.250 x 6.008 x .914 hub seal format and is suitable where a hand-fit grease hub seal is required on parallel spindle trailer hubs. This product is widely referenced as STM-0723G across industry catalogues and cross-reference listings.
- - Outside Diameter: 150 mm
- - Inside Diameter: 107 mm
- - Depth: 27 mm - Seal Type: Grease-only hub / wheel seal
- - Application: Trailer TP/HP parallel spindle
- - Inner Bearing: HM518445
- - Inner Bearing Combination: 518410 / 518445
- - Hub Seal Size: 4.250 x 6.008 x 0.914
- - Installation Method: Hand fit (no special tools required) - Used on TP/HP parallel spindle trailer hubs in heavy transport applications - Suits Fruehauf Pro-Par trailer axle systems using tapered bearings - Compatible with inner bearing combination HM518445 / HM518410 - Grease-only hub seal for wheel ends lubricated with grease rather than oil - Hand-fit installation with no special tools required - Outside diameter 150 mm, inside diameter 107 mm, depth 27 mm - Manufactured to Stemco tolerance specifications for consistent sealing performance - Supports reliable wheel end sealing from service to service intervals - Helps retain grease in the hub and reduce contamination ingress - Suitable for fleets seeking a standard-duty grease hub seal option - Cross-referenced in Stemco literature alongside Voyager and Guardian HP seal options - Install as per Stemco standard Grit-Guard seal installation instructions - Confirm axle model and bearing set against Stemco quick reference catalogue before fitment
