SKU:- JGJWP10 | Part Number:- JWP10
Sale price
$171.89
Regular price

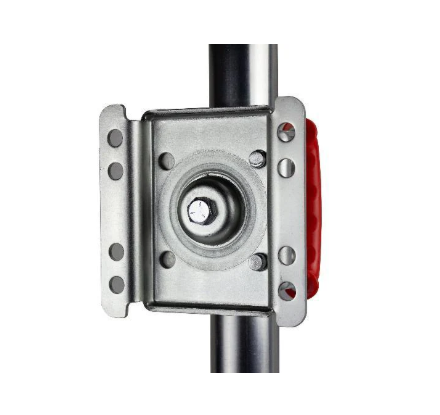

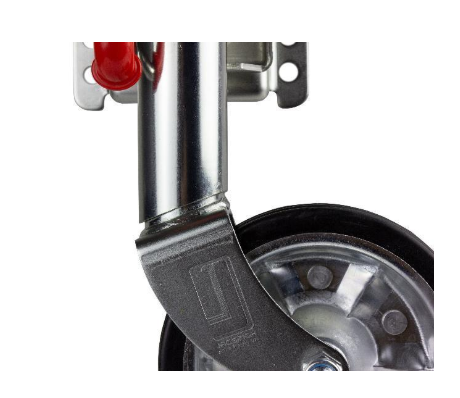

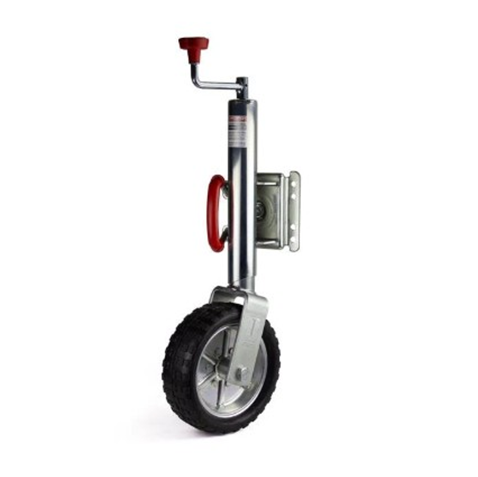

The JGJWP10 Jockey Wheel 10" Solid Wheel Swing Up 455kg is a zinc-plated swing-up jockey wheel with a 255mm metal wheel and solid tyre, rated to a static load capacity of 455kg (1,000lbs). The adjustable leg extends 255mm between a minimum height of 630mm and a maximum height of 885mm, with an outer tube of 57.2mm, inner tube of 50.80mm, and a centre of bracket to bottom measurement of 410mm.
- � Product: Jockey Wheel � 10" Solid Wheel, Swing Up
- � Static Load Capacity: 455kg (1,000lbs)
- � Wheel: 255mm metal with solid tyre
- � Finish: Zinc plated
- � Min Height: 630mm
- � Max Height: 885mm
- � Extension: 255mm
- � Outer Tube: 57.2mm
- � Inner Tube: 50.80mm
- � Centre of Bracket to Bottom: 410mm
