SKU:- K028453 | Part Number:- K028453
Sale price
$593.69
Regular price

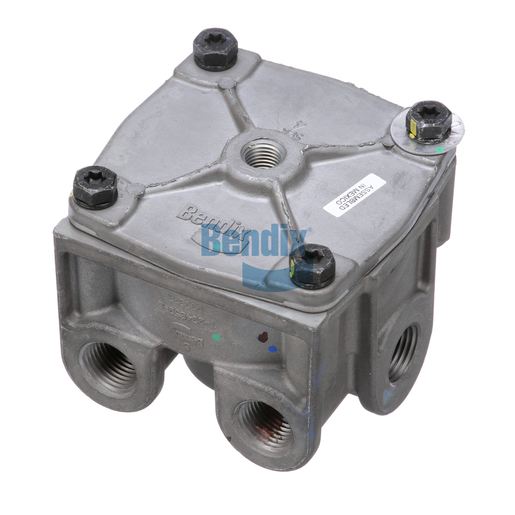

The Bendix Valve Relay R12 K028453 is an R-12 relay valve used to control air pressure in heavy-duty truck and commercial vehicle braking systems. The valve functions as a relay between the brake pedal signal and the brake chambers, helping the service brakes apply quickly and consistently across the vehicle. It features a 2 SUP / 2 DEL (H) body configuration with 1/2-14 NPT supply ports and 1/2-14 NPT delivery ports, plus a 1/4-18 NPT control or secondary service port to integrate with standard air brake plumbing. The unit incorporates an exhaust adapter without silencer and is specified with a crack pressure of 5.5 PSI for predictable operation. With an operating temperature range from -40 degrees Fahrenheit to 200 degrees Fahrenheit (-40 degrees Celsius to 93 degrees Celsius), it is suited to a wide range of on-road conditions. Supplied as an aftermarket new component, it is used as a service replacement for existing Bendix R-12 relay valves.
- Height: 12.001 in - Width: 12.001 in - Length: 12.001 in - Weight: 3.13 lb - Minimum Operating Temperature: -40 F (-40 C) - Maximum Operating Temperature: 200 F (93 C) - Crack Pressure: 5.5 psi - Used in heavy-duty truck and commercial vehicle air brake systems as an R-12 relay valve
- Regulates air pressure to the service brakes to improve braking responsiveness and efficiency
- Body configuration with 2 SUP / 2 DEL (H) ports to manage multiple supply and delivery lines
- Control / secondary service port threaded 1/4-18 NPT for standard air system connections
- Supply ports 1 and 2 threaded 1/2-14 NPT to suit common heavy vehicle air plumbing
- Delivery ports 1 and 2 threaded 1/2-14 NPT for direct connection to brake chambers
- Crack pressure of 5.5 PSI to provide consistent valve actuation and predictable brake response
- Exhaust adapter without silencer to vent exhaust air from the brake circuit
- Operating temperature range from -40 deg F to 200 deg F (-40 deg C to 93 deg C) for use in varied climates and on-road conditions
- Marketed as an aftermarket new component for service replacement of existing R-12 relay valves
- Supplied with TMC washer RV055 reference for compatibility with industry-standard hardware
- Supports safe and consistent brake operation in demanding freight and fleet applications
